Hot-Sale Portable High Quality High Mast Lighting Pole
Technical Data
|
Product Name |
Hot-Sale Portable High Quality High Mast Lighting Pole |
||||||
|
Material |
Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 |
||||||
|
Height |
5M |
6M |
7M |
8M |
9M |
10M |
12M |
|
Dimensions(d/D) |
60mm/150mm |
70mm/150mm |
70mm/170mm |
80mm/180mm |
80mm/190mm |
85mm/200mm |
90mm/210mm |
|
Thickness |
3.0mm |
3.0mm |
3.0mm |
3.5mm |
3.75mm |
4.0mm |
4.5mm |
|
Flange |
260mm*14mm |
280mm*16mm |
300mm*16mm |
320mm*18mm |
350mm*18mm |
400mm*20mm |
450mm*20mm |
|
Tolerance of dimension |
±2/% |
||||||
|
Minimum yield strength |
285Mpa |
||||||
|
Max ultimate tensile strength |
415Mpa |
||||||
|
Anti-corrosion performance |
Class II |
||||||
|
Against earthquake grade |
10 |
||||||
|
Color |
Customized |
||||||
|
Surface treatment |
Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II |
||||||
|
Shape Type |
Conical pole, Octagonal pole,Square pole, Diameter pole |
||||||
|
Arm Type |
Customized: single arm,double arms,triple arms,four arms |
||||||
|
Stiffener |
With big size to strength the pole to resist the wind |
||||||
|
Powder coating |
Thickness of powder coating is 60 -100um. Pure polyester plastic powder coating is stable and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with blade scratch (15×6 mm square). |
||||||
|
Wind Resistance |
According to local weather condition, General design strength of wind resistance is ≥150KM/H |
||||||
|
Welding Standard |
No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. |
||||||
|
Hot-Dip Galvanized |
Thickness of hot-galvanized is 60 -100um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test. |
||||||
|
Anchor bolts |
Optional |
||||||
|
Material |
Aluminium,SS304 is available |
||||||
|
Passivation |
Available |
||||||
Pole Shape(Customized Service)
Finished Poles
Lighting Pole Superiority
Packing&Loading

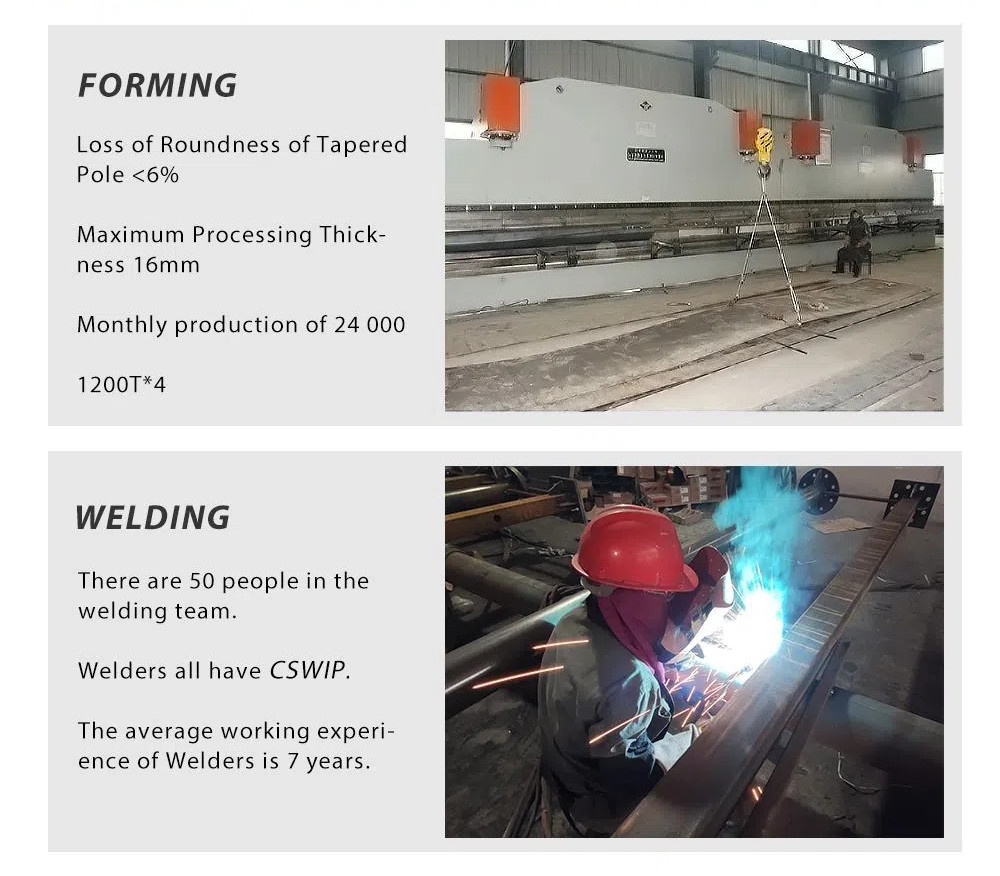

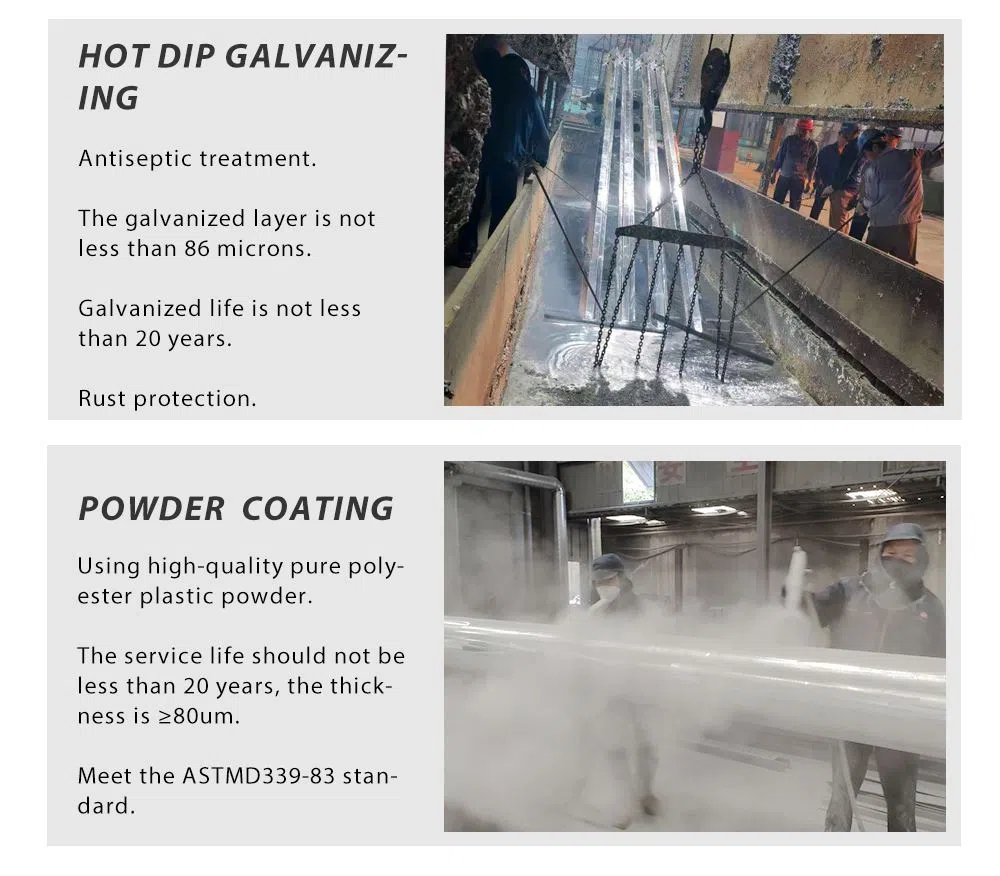

Product Process
Products Advantage
● Light source:200W-2000W High voltage sodium lamps/LED lamp/Metal halide lamp optional
● Rated voltage and frequency:220V(±10%)/380v,50HZ/60HZ.
● Applications:City square, station, wharf, freight code, road, sports venues, overpasses, etc.
● Environment-friendly:lead-free,no-mercury,no fraigile glass,no environment harmful materials
● Energy saving effect:more than 75% electricity saving over conventional sodium light.
